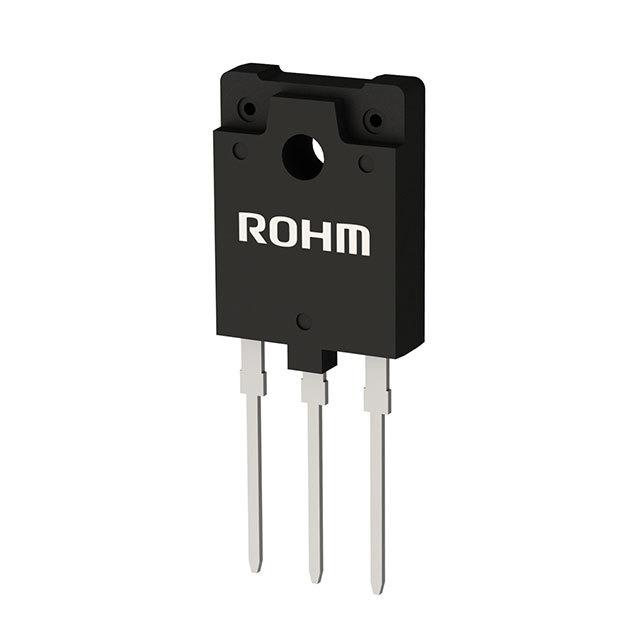

Image is for your reference only,please check specifications for details

SCT2H12NZGC11 - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC11182348
Category:
MOSFET, MOSFET Transistor
Package:
TO-3
Datasheet:
Datasheet 3D Model
Description:
Silicon Carbide Power MOSFET, N Channel, 3.7A, 1.7kV, 1.15Ω, 18V, 2.8V
Stock Locations:
Availability:
3,621 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.9

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SCT2H12NZGC11 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.15 Ω
Polarity	N-Channel
Power Dissipation	35 W
Threshold Voltage	2.8 V
Drain to Source Voltage (Vds)	1.7 kV
Breakdown Voltage (Drain to Source)	1700 V
Rise Time	21 ns
Input Capacitance (Ciss)	184pF @800V(Vds)
Fall Time	74 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	35W (Tc)
	Show
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
