SGH80N60UFDTU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC185299975
Category:
IGBT Transistor, IGBT Module
Package:
TO-3-3
Datasheet:
Datasheet 3D Model
Description:

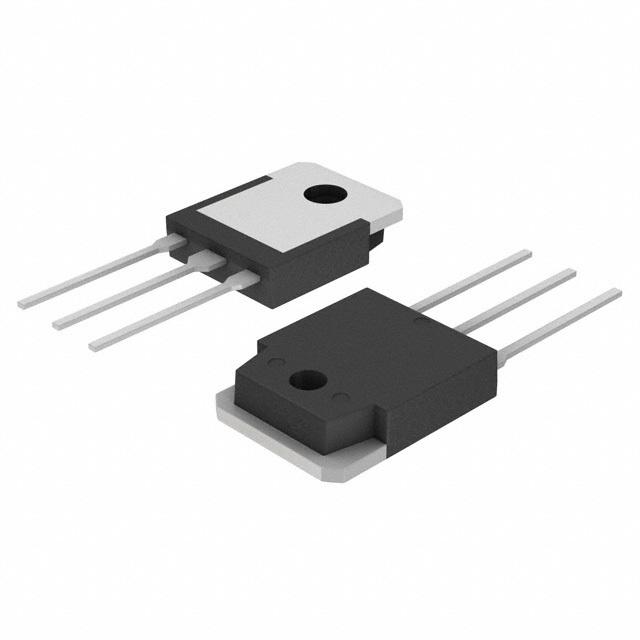

FAIRCHILD SEMICONDUCTOR SGH80N60UFDTU IGBT Single Transistor, 80A, 2.6V, 195W, 600V, TO-3P, 3Pins
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

SGH80N60UFDTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Voltage Rating (DC)	100 V
Current Rating	28.0 A
Power Rating	195 W
Polarity	N-Channel
Power Dissipation	195 W
Rise Time	50.0 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	95 ns
Input Power (Max)	195 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	195000 mW
	Show
Size-Length	15.8 mm
Size-Width	5 mm
Size-Height	18.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
