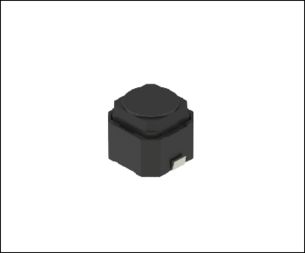

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SKPMAPE010 is a TACT Switch™ SMD type Tactile Switch features top push operating direction and soft feeling with metal contact to provide low contact resistance.
Soft feeling type
Surface mount type
100000-cycle Operating life
-40 to 90°C Operating temperature range

Show

SKPMAPE010 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	16 V
Current Rating	50 mA
Number of Rows	1 Row
Contacts Type	SPST
Contact Current Rating	50mA @12VDC
Current Rating (Max)	0.05A @16VDC
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	16 VDC
Voltage Rating (DC Max)	16 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	6.6 mm
Size-Width	6 mm
Size-Height	5 mm
Operating Temperature	-40℃ ~ 90℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536509065
ECCN Code	EAR99
HK STC License	NLR
