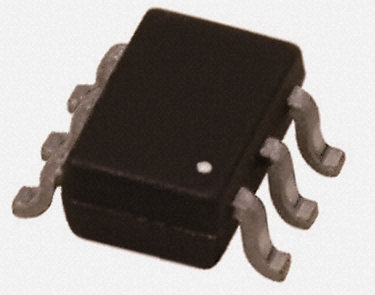

Image is for your reference only,please check specifications for details

SMS15CT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20830303
Category:
TVS Diode
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SMS15CT1G TVS Diode, SMS05C Series, Unidirectional, 15V, 29V, TSOP, 6Pins
Stock Locations:
Availability:
60 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

5-Line Transient Voltage Suppressor Array
This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single TSOP−6 package.
Features
• Protects up to 5 Lines in a Single TSOP−6 Package
• Peak Power Dissipation − 350 W (8 X 20 μs Waveform)
• ESD Rating of Class 3B (Exceeding 8.0 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model
• Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8.0 kV (Contact)
• Flammability Rating of UL 94 V−0
• These are Pb−Free Devices
Applications
• Hand−Held Portable Applications
• Networking and Telecom
• Automotive Electronics
• Serial and Parallel Ports
• Notebooks, Desktops, Servers

Show

SMS15CT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Voltage Rating (DC)	15.0 V
Operating Voltage	15.0 V
Capacitance	125 pF
Power Rating	350 W
Halogen Free Status	Halogen Free
Breakdown Voltage	17 V
Number of Channels	5 Channel
Number of Positions	6 Position
Power Dissipation	350 W
Clamping Voltage	29 V
Test Current	1 mA
Max Breakdown Voltage	19 V
Peak Pulse Power	350 W
Min Breakdown Voltage	17 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.1 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
