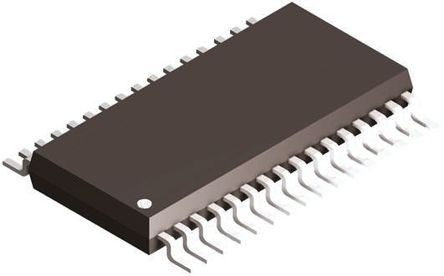

Image is for your reference only,please check specifications for details

SN65LVDS389DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC22396451
Category:
Interface IC, Interface Controller
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
LVDS PHY (<800Mbps) Octal LVDS Transmitter LVDS Driver 0.454V 38Pin TSSOP Tube
Stock Locations:
Availability:
2,567 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.56

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN65LVDS389DBT is an octal differential Line Driver implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds and allow operation with a 3.3V supply rail. Any of the 16 current-mode drivers will deliver a minimum differential output voltage magnitude of 247mV into a 100R load when enabled. When disabled, the driver outputs are high-impedance. Each driver input (A) and enable (EN) have an internal pull-down that will drive the input to a low level when open-circuited.
Very low radiation (EMI)
Low-voltage differential signaling with typical output voltage of 350mV and a 100R load
Driver is high-impedance when disabled or with VCC <1.5V
Bus-pin ESD protection exceeds 15kV
630Mbps Signalling rate
<2.9ns Propagation delay time
<150ps Output skew
<1.5ns Part-to-part skew
35mW at 200MHz Total power dissipation in each driver
Green product and no Sb/Br

Show

SN65LVDS389DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Supply Voltage (DC)	3.00V (min)
Supply Current	70 mA
Number of Channels	8 Channel
Input Current	70.0 mA
Power Dissipation	1071 W
Data Rate	630 Mbps
Output Current (Max)	24 mA
Input Current (Min)	20 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1071 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
