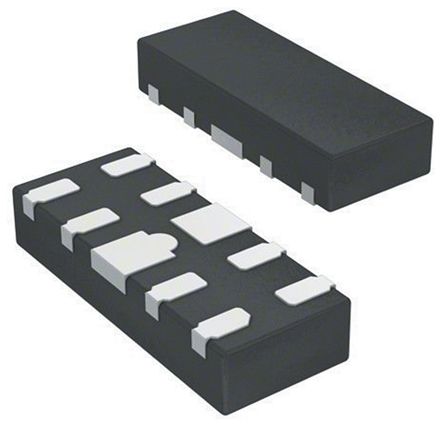

Image is for your reference only,please check specifications for details

SN65LVDS4RSET - TI
Manufacturer:
TI
ManyChip's Part#:
MC16929511
Category:
Interface IC, Interface Controller
Package:
UQFN-10
Datasheet:
Datasheet 3D Model
Description:
Differential Line Receiver IC, 500Mbps, LVDS Interface, 1.62V to 2.75V, UQFN-10
Stock Locations:
Availability:
83 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.59

Updated at 30/07/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN65LVDS4RSET is a single low-voltage high-speed differential Line Driver/Receiver for use with network routers.
Requires external failsafe
Bus-terminal ESD exceeds 2kV (HBM)
Low-voltage differential signaling with typical output voltage of 350mV into a 100R load
500Mbps Signalling rate
2.1ns Typical receiver propagation delay time
40mW Typical power dissipation at 250MHz
<50mV Differential input voltage threshold
Green product and no Sb/Br

Show

SN65LVDS4RSET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Supply Voltage (DC)	1.62V (min)
Number of Positions	10 Position
Power Dissipation	40 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	2.75 V
Supply Voltage (Min)	1.62 V
	Show
Size-Length	2.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
