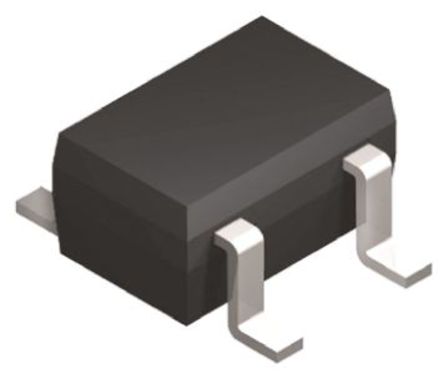

Image is for your reference only,please check specifications for details
- SN74AUP1G14DCKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC21263303
-
Category:Logic Control, Logic Gate IC
-
Package:SC-70-5
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS SN74AUP1G14DCKR Inverter, 74AUP1G14, 1Input, 4mA, 0.8V to 3.6V, SC-70-5
-
Stock Locations:
-
Availability:1,013 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.25
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION/ORDERING INFORMATION
- The AUP family is TI"s premier solution to the industry"s low power needs in battery-powered portable
- applications. This family ensures a very low static and dynamic power consumption across the entire VCC
- range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity (see Figure 1 and Figure 2).
- FEATURES
- • Available in the Texas Instruments NanoStar™ Package
- • Low Static-Power Consumption (ICC = 0.9 mA Max)
- • Low Dynamic-Power Consumption (Cpd = 4.4 pF Typ at 3.3 V)
- • Low Input Capacitance (CI = 1.5 pF Typ)
- • Low Noise – Overshoot and Undershoot <10% of VCC
- • Ioff Supports Partial-Power-Down Mode Operation
- • Includes Schmitt-Trigger Inputs
- • Wide Operating VCC Range of 0.8 V to 3.6 V
- • Optimized for 3.3-V Operation
- • 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
- • tpd = 4.9 ns Max at 3.3 V
- • Suitable for Point-to-Point Applications
- • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- • ESD Performance Tested Per JESD 22
- – 2000-V Human-Body Model(A114-B, Class II)
- – 1000-V Charged-Device Model (C101)
SN74AUP1G14DCKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Supply Voltage (DC) | 800mV (min) |
| Output Current | 4 mA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 5 Position |
| Number of Bits | 1 Bit |
| Propagation Delay Max (tpd) | 4.90 ns, 5.60 ns, 6.10 ns |
| Number of Gates | 1 Gate |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.8V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 0.8 V |
| Show | |
| Size-Length | 2.15 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
