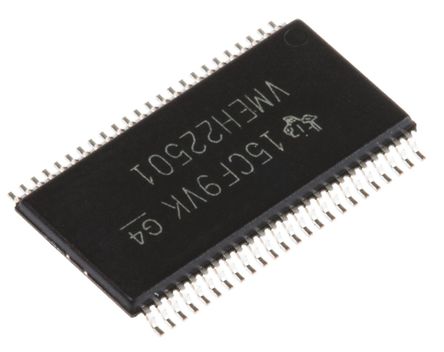

- SN74VMEH22501DGGR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4275103
-
Category:Logic Controller, Logic IC
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS SN74VMEH22501DGGR Bus Transceiver, 8Channels, 64mA, 3.15V to 3.45V, TSSOP-48
-
Stock Locations:
-
Availability:247 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.44
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74VMEH22501DGGR is a 8-bit Universal Bus Transceiver and two 1-bit bus transceivers with 3-state outputs. It is designed for 3.3V VCC operation with 5V tolerant inputs. The UBT™ transceiver allows transparent, latched and flip-flop modes of data transfer and the separate LVTTL input and outputs on the bus transceivers provide a feedback path for control and diagnostics monitoring. The high-speed backplane operation is a direct result of the improved OEC™ circuitry and high drive that has been designed and tested into the VME64x backplane model. The B-port I/Os are optimized for driving large capacitive loads and include pseudo-ETL input thresholds (1/2 VCC ±50mV) for increased noise immunity. These specifications support the 2eVME protocols in VME64x (ANSI/VITA 1.1) and 2eSST protocols in VITA 1.5. With proper design of a 21-slot VME system, a designer can achieve 320Mbytes transfer rates on linear backplanes and, possibly, 1Gbyte transfer rates on the VME320 backplan
- Member of the Texas Instruments Widebus™ family
- Bus transceiver split LVTTL port provides a feedback path for control and diagnostics monitoring
- I/O Interfaces are 5V tolerant
- Ioff, Power-up 3-state and BIAS VCC support live insertion
- Bus hold on 3A-port data inputs
- Flow-through architecture facilitates printed circuit board layout
- Distributed VCC and GND pins minimize high-speed switching noise
- Latch-up performance exceeds 100mA per JESD 78, Class II
- 26R Equivalent series resistor on 3A ports and Y outputs
- Green product and no Sb/Br
SN74VMEH22501DGGR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 3.15V ~ 3.45V |
| Number of Outputs | 10 Output |
| Input Voltage (DC) | 2.00 V |
| Output Voltage | 2.4 V |
| Output Current | 64 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 10 Bit |
| Propagation Delay Max (tpd) | 14.5 ns |
| Voltage Nodes | 3.30 V |
| Output Current Drive | -1.00 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 3.15V ~ 3.45V |
| Supply Voltage (Max) | 3.45 V |
| Supply Voltage (Min) | 3.15 V |
| Input Voltage | 2 V |
| Show | |
| Size-Length | 12.6 mm |
| Size-Width | 6.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
