- Feature
- • New revolutionary high voltage technology
- • Ultra low gate charge
- • Periodic avalanche rated
- • Extreme dv/dt rated
- • Ultra low effective capacitances
- • Improved transconductance
- • Pb-free lead plating; RoHS compliant
- • Qualified according to JEDEC0) for target applications

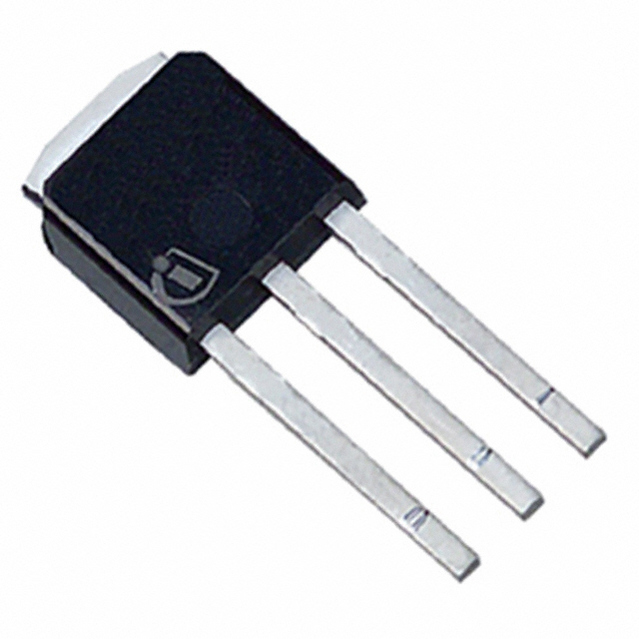

SPU02N60S5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-251-3 |
| Voltage Rating (DC) | 600 V |
| Current Rating | 1.80 A |
| Number of Channels | 1 Channel |
| Polarity | N-CH |
| Power Dissipation | 25000 mW |
| Threshold Voltage | 3.5 V |
| Input Capacitance | 240 pF |
| Gate Charge | 9.50 nC |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 1.80 A |
| Rise Time | 35 ns |
| Input Capacitance (Ciss) | 240pF @25V(Vds) |
| Input Power (Max) | 25 W |
| Fall Time | 20 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 2.38 mm |
| Size-Height | 6.22 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
