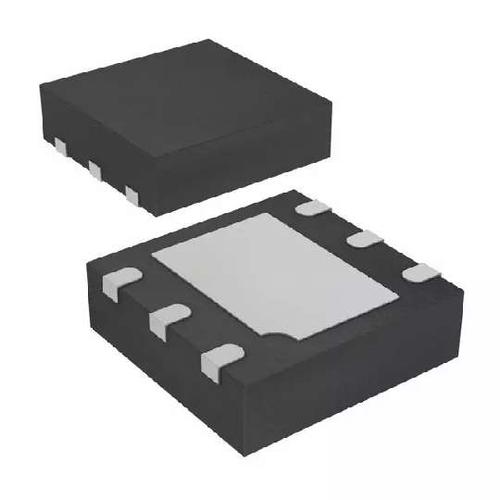

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 6-VDFN Exposed Pad

Show

ST1S09IPUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DFN-6
Number of Outputs	1 Output
Output Voltage	≤5.00 V
Output Current	2 A
Number of Positions	6 Position
Switching Frequency	1.5 MHz
Input Voltage (Max)	6 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5 V
Output Voltage (Min)	800 mV
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-30 ℃
Supply Voltage	2.7 V
Input Voltage	2.7V ~ 6V
	Show
Operating Temperature	-30℃ ~ 85℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
