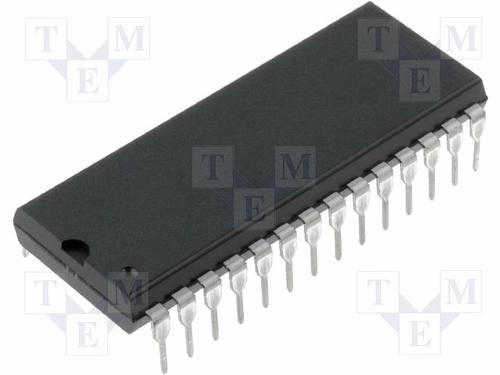

- ST62T65CB6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC74637100
-
Category:Microcontroller, MCU IC
-
Package:DIP-28
-
Datasheet:Datasheet 3D Model
-
Description:8Bit Microcontroller, ST62xx, 8MHz, 3.79KB, 128Byte, 28Pins, DIP
-
Stock Locations:
-
Availability:1,717 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 83.73
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- INTRODUCTION
- The ST62T55C, ST62T65C and ST62E65C devices are low cost members of the ST62xx 8-bit HCMOS family of microcontrollers, which is targeted at low to medium complexity applications. All ST62xx devices are based on a building block approach: a common core is surrounded by a number of on-chip peripherals. The ST62E65C is the erasable EPROM version of the ST62T65C device, which may be used to emulate the ST62T55C and ST62T65C device, as well as the respective ST6255C and ST6265C ROM devices.
- ■ 3.0 to 6.0V Supply Operating Range
- ■ 8 MHz Maximum Clock Frequency
- ■ -40 to +125°C Operating Temperature Range
- ■ Run, Wait and Stop Modes
- ■ 5 Interrupt Vectors
- ■ Look-up Table capability in Program Memory
- ■ Data Storage in Program Memory: User selectable size
- ■ Data RAM: 128 bytes
- ■ Data EEPROM: 128 bytes (none on ST62T55C)
- ■ User Programmable Options
- ■ 21 I/O pins, fully programmable as:
- – Input with pull-up resistor
- – Input without pull-up resistor
- – Input with interrupt generation
- – Open-drain or push-pull output
- – Analog Input
- ■ 8 I/O lines can sink up to 30mA to drive LEDs or TRIACs directly
- ■ 8-bit Timer/Counter with 7-bit programmable prescaler
- ■ 8-bit Auto-reload Timer with 7-bit programmable prescaler (AR Timer)
- ■ Digital Watchdog
- ■ Oscillator Safe Guard
- ■ Low Voltage Detector for Safe Reset
- ■ 8-bit A/D Converter with 13 analog inputs
- ■ 8-bit Synchronous Peripheral Interface (SPI)
- ■ On-chip Clock oscillator can be driven by Quartz Crystal Ceramic resonator or RC network
- ■ User configurable Power-on Reset
- ■ One external Non-Maskable Interrupt
- ■ ST626x-EMU2 Emulation and Development System (connects to an MS-DOS PC via a parallel port)
ST62T65CB6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | DIP-28 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Positions | 28 Position |
| Clock Speed | 8 MHz |
| RAM Memory Size | 128 b |
| Number of Bits | 8 Bit |
| FLASH Memory Size | 3884 b |
| Number of I/O Pins | 21 IO |
| Memory Size | 4000 B |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 21 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.6 VDC |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
