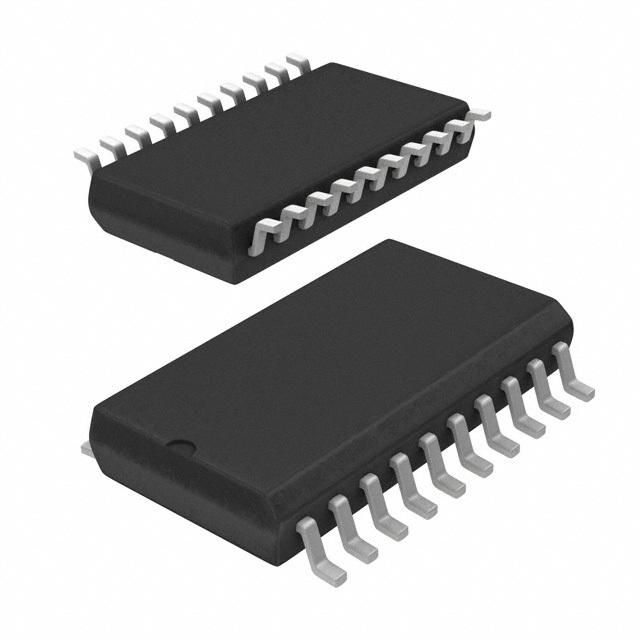

ST7FLITE35F2M6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC7541204
Category:
Microcontroller, MCU IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
MCU 8Bit ST7 CISC 8KB Flash 3.3V/5V 20Pin SO Tube
Stock Locations:
Availability:
209 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST7LITE3 is a member of the ST7 microcontroller family. All ST7 devices are based on a common industry-standard 8-bit core, featuring an enhanced instruction set.
The ST7LITE3 features FLASH memory with byte-by-byte In-Circuit Programming (ICP) and In-Application Programming (IAP) capability.
Under software control, the ST7LITE3 device can be placed in WAIT, SLOW, or HALT mode, reducing power consumption when the application is in idle or standby state.
The enhanced instruction set and addressing modes of the ST7 offer both power and flexibility to software developers, enabling the design of highly efficient and compact application code. In addition to standard 8-bit data management, all ST7 microcontrollers feature true bit manipulation, 8x8 unsigned multiplication and indirect addressing modes.
For easy reference, all parametric data are located in section 13 on page 131.
The devices feature an on-chip Debug Module (DM) to support in-circuit debugging (ICD). For a description of the DM registers, refer to the ST7 ICC Protocol Reference Manual.
**Key Features**
A/D Converter7 input channels 10-bit resolution
Interrupt Management10 interrupt vectors plus TRAP and RESET12 external interrupt lines (on 4 vectors)
Development ToolsFull hardware/software development packageDM (Debug module)
Memories8 Kbytes program memory: single voltage extended Flash (XFlash) Program memory with read-out protection, In-Circuit Programming and In-Application programming (ICP and IAP), data retention: 20 years at 55˚C.384 bytes RAM256 bytes data EEPROM with read-out protection. 300K write/erase cycles guaranteed, data retention: 20 years at 55˚C.
I/O PortsUp to 15 multifunctional bidirectional I/O lines7 high sink outputs
Clock, Reset and Supply ManagementEnhanced reset systemEnhanced low voltage supervisor (LVD) for main supply and an auxiliary voltage detector (AVD) with interrupt capability for implementing safe power-down proceduresClock sources: Internal RC 1% oscillator, crystal/ceramic resonator or external clock Optional x4 or x8 PLL for 4 or 8 MHz internal clockFive Power Saving Modes: Halt, Active-Halt, Wait and Slow, Auto Wake Up From Halt
2 Communication InterfacesMaster/slave LINSCI™ asynchronous serial interfaceSPI synchronous serial interface
Instruction Set8-bit data manipulation63 basic instructions with illegal opcode detection17 main addressing modes8 x 8 unsigned multiply instructions
5 TimersConfigurable Watchdog TimerTwo 8-bit Lite Timers with prescaler, 1 realtime base and 1 input captureTwo 12-bit Auto-reload Timers with 4 PWM outputs, input capture and output compare functions

Show

ST7FLITE35F2M6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	16 MHz
Number of Positions	20 Position
Clock Speed	8.00 MHz
RAM Memory Size	384 b
Power Dissipation	330 mW
FLASH Memory Size	8 KB
Number of I/O Pins	15 IO
Memory Size	8000 B
Number of ADCs	1 ADC
Number of Inputs and Outputs	15 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	330 mW
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
