Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

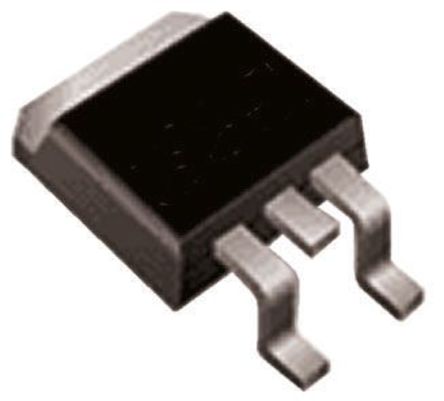

Case/Package | TO-263-3 |
Voltage Rating (DC) | 40.0 V |
Current Rating | 120 A |
Drain to Source Resistance (on) (Rds) | 3.70 mΩ |
Polarity | N-Channel |
Power Dissipation | 310000 mW |
Drain to Source Voltage (Vds) | 40 V |
Breakdown Voltage (Drain to Source) | 40.0 V |
Breakdown Voltage (Gate to Source) | ±20.0 V |
Continuous Drain Current (Ids) | 120 A |
Rise Time | 320 ns |
Input Capacitance (Ciss) | 5100pF @25V(Vds) |
Input Power (Max) | 310 W |
Fall Time | 120 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 310000 mW |
Show | |
Size-Length | 10.4 mm |
Size-Width | 9.35 mm |
Size-Height | 4.6 mm |
Operating Temperature | -55℃ ~ 175℃ (TJ) |
Product Lifecycle Status | Unknown |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
