Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

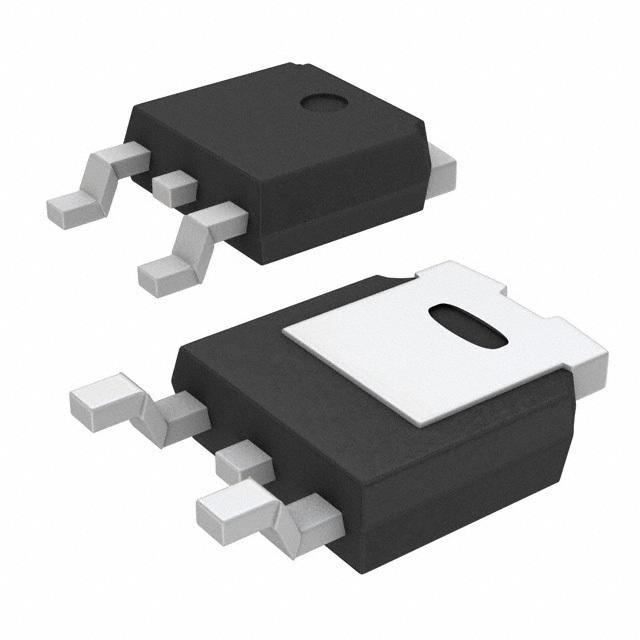

Case/Package | TO-252-3 |
Voltage Rating (DC) | 600 V |
Current Rating | 5.00 A |
Power Rating | 96 W |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 1 Ω |
Polarity | N-Channel |
Power Dissipation | 96 W |
Threshold Voltage | 4 V |
Drain to Source Voltage (Vds) | 600 V |
Breakdown Voltage (Drain to Source) | 600 V |
Breakdown Voltage (Gate to Source) | ±30.0 V |
Continuous Drain Current (Ids) | 5.00 A |
Rise Time | 10 ns |
Input Capacitance (Ciss) | 400pF @25V(Vds) |
Input Power (Max) | 96 W |
Fall Time | 10 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Power Dissipation (Max) | 96W (Tc) |
Show | |
Size-Length | 6.6 mm |
Size-Width | 6.2 mm |
Size-Height | 2.4 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
