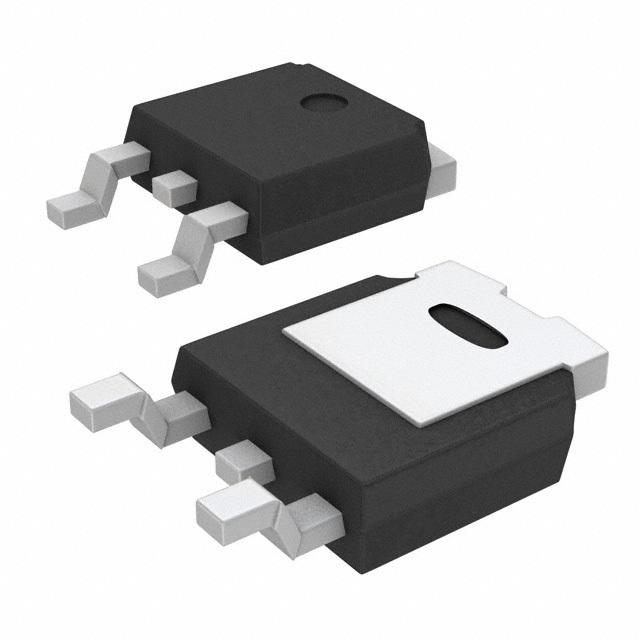

Image is for your reference only,please check specifications for details

Updated at 03/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
This series of products utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. This is suitable for the most demanding DC-DC converter application where high efficiency is to be achieved.
FEATURES
■ RDS(ON)Qg industry’s benchmark
■ Conduction losses reduced
■ Switching losses reduced
■ Low threshold device
■ In compliance with the 2002/95/ec european directive
Application
■ Switching applications

Show

STD90N02L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Voltage Rating (DC)	24.0 V
Current Rating	60.0 A
Polarity	N-CH
Power Dissipation	70 W
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	60.0 A
Rise Time	110 ns
Input Capacitance (Ciss)	2050pF @16V(Vds)
Fall Time	8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	70W (Tc)
	Show
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
