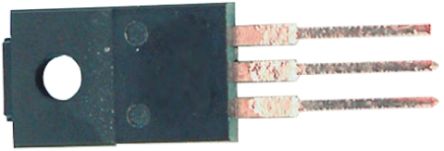

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STF13NK50Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	N-Channel
Power Dissipation	30W (Tc)
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	6.50 A
Rise Time	23 ns
Input Capacitance (Ciss)	1600pF @25V(Vds)
Input Power (Max)	30 W
Fall Time	24 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	30W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	16.4 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HK STC License	NLR
