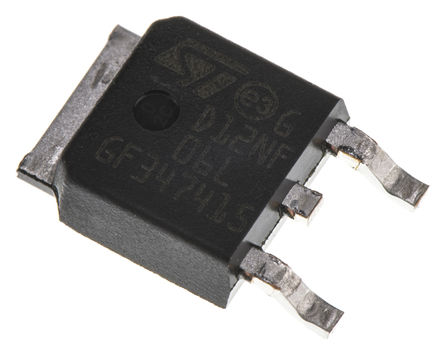

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STGD5NB120SZT4 is a 1200V Low Drop Internally Clamped IGBT that utilizes the advanced Power MESH™ process resulting in an excellent trade-off between switching performance and low on-state behaviour. The IGBT is ideal for use in inrush current limitation and pre-heating for electronic lamp ballast. Improved switch-off energy spread versus increasing temperature result in reduced switching losses.
Low on-voltage drop
High current capability
Off losses include tail current
High voltage clamping, low VCE (sat) for reduced conduction losses
Tight parameter distribution for design simplification and easy paralleling

Show

STGD5NB120SZT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	1.20 kV
Current Rating	5.00 A
Power Rating	75 W
Number of Positions	3 Position
Power Dissipation	75 W
Input Capacitance	430 pF
Rise Time	170 ns
Breakdown Voltage (Collector to Emitter)	1200 V
Thermal Resistance	100 ℃/W
Input Power (Max)	75 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	75 W
	Show
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
