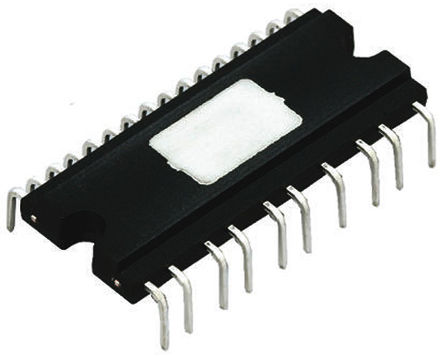

STGIPS20K60 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC46537666
Category:
IGBT Transistor, IGBT Module
Package:
SDIP-25
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STGIPS20K60 Intelligent Power Module (IPM), IPM, IGBT, 600V, 18A, 2.5kV, SDIP, SLLIMM
Stock Locations:
Availability:
393 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.42

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuit-rugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and air conditioners.
Short-circuit rugged IGBTs
3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down / pull up resistors
Under voltage lockout
Internal bootstrap diode
Interlocking function
Smart shutdown function
Comparator for fault protection against over temperature and over current
DBC leading to low thermal resistance

Show

STGIPS20K60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	25 Pin
Case/Package	SDIP-25
Isolation Voltage	2500 VDC
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	52 W
	Show
Size-Length	44.9 mm
Size-Width	22.5 mm
Size-Height	7.5 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
