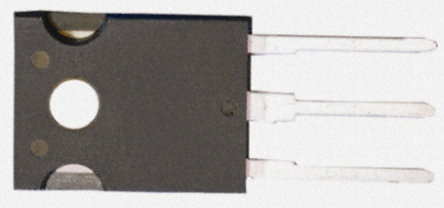

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STGW30NC120HD is a N-channel very fast PowerMESH™ IGBT for use with induction heating and soft switching application. Using the latest high voltage technology based on its patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, with outstanding performances. The suffix H identifies a family optimized for high frequency application in order to achieve very high switching performances (reduced tfall) maintaining a low voltage drop.
Low on-losses
Low on-voltage drop (Vcesat)
High current capability
High input impedance (voltage driven)
Low gate charge

Show

STGW30NC120HD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	1.20 kV
Current Rating	30.0 A
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	220 W
Rise Time	11.0 ns
Breakdown Voltage (Collector to Emitter)	1200 V
Reverse recovery time	152 ns
Input Power (Max)	220 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	220000 mW
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
