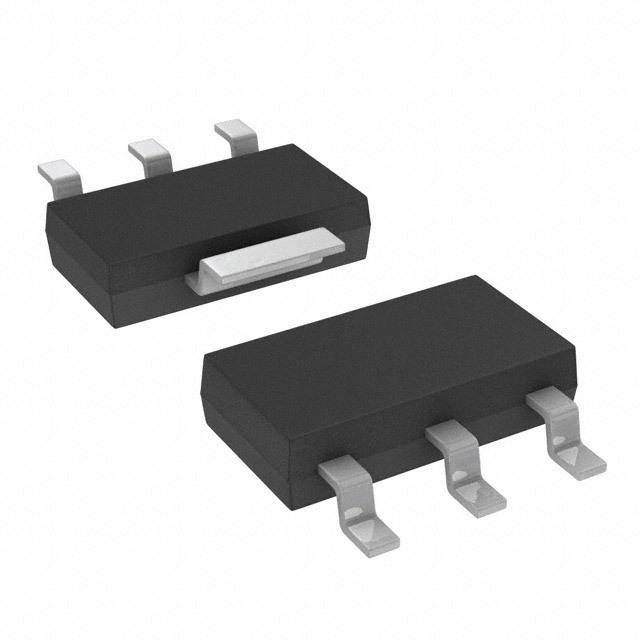

STN1NF20 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Channels	1 Channel
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	1.1 Ω
Power Dissipation	2 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	200 V
Rise Time	5.6 ns
Input Capacitance (Ciss)	90pF @25V(Vds)
Input Power (Max)	2 W
Fall Time	12.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
