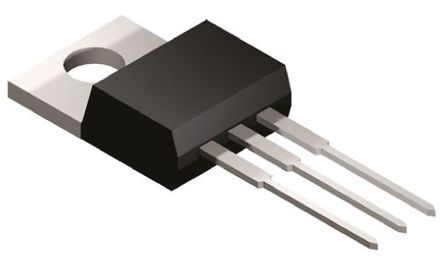

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to STMicroelectronics, both your amplification and switching needs can be taken care of with one component: the STP45N10F7 power MOSFET. Its maximum power dissipation is 60000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This MOSFET transistor has an operating temperature range of -55 °C to 175 °C. This N channel MOSFET transistor operates in enhancement mode. This device utilizes stripfet vii technology.

Show

STP45N10F7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0145 Ω
Power Dissipation	60 W
Threshold Voltage	4.5 V
Drain to Source Voltage (Vds)	100 V
Rise Time	17 ns
Input Capacitance (Ciss)	1640pF @50V(Vds)
Input Power (Max)	60 W
Fall Time	8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	60W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	15.75 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
