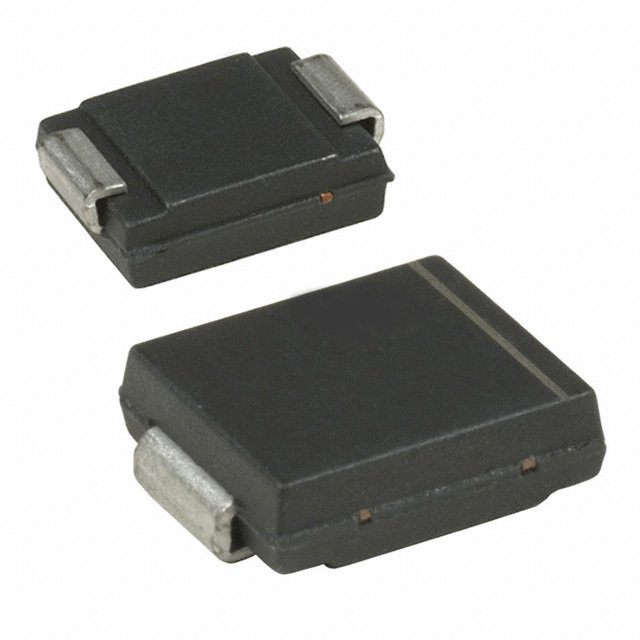

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STPS5L60SY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMC
Number of Positions	2 Position
Forward Voltage	520mV @5A
Thermal Resistance	15 ℃/W
Forward Current	5000 mA
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	520mV @5A
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
