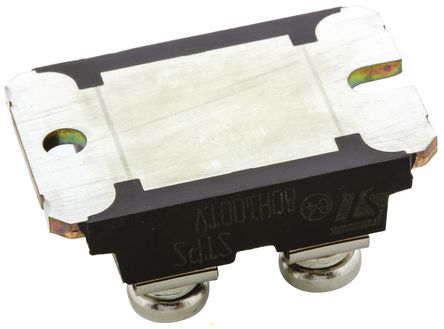

STPS80H100TV - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC23675675
Category:
Schottky Diode
Package:
ISOTOP
Datasheet:
Datasheet 3D Model
Description:
Schottky Rectifier, High Voltage/Power, 100V, 40A, Dual Independent, ISOTOP, 4Pins, 650mV
Stock Locations:
Availability:
30 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.62

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS80H100TV is a high-voltage dual Schottky Barrier rectifier designed SWITCHMODE™ power supplies and other power converters. This device is intended for use in medium voltage operation and particularly in high frequency circuitries where low switching losses and low noise are required.

Show

STPS80H100TV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	100 V
Current Rating	80.0 A
Number of Positions	4 Position
Forward Voltage	780mV @40A
Forward Current	40 A
Max Forward Surge Current (Ifsm)	700 A
Maximum Forward Voltage (Max)	650 mV
Forward Current (Max)	40 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
