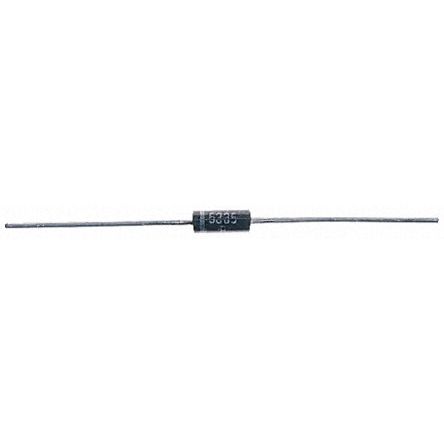

Image is for your reference only,please check specifications for details

STTH2L06 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2070533
Category:
TVS Diode
Package:
DO-41
Datasheet:
Datasheet 3D Model
Description:
STTH2L06 Series 600V 2A 85ns High Efficiency Ultrafast Diode - DO-41
Stock Locations:
Availability:
3,983 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH2L06 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41
Voltage Rating (DC)	600 V
Current Rating	2.00 A
Output Current	≤2.00 A
Forward Voltage	1.3V @2A
Polarity	Standard
Thermal Resistance	35 ℃/W
Reverse recovery time	85 ns
Forward Current	2000 mA
Max Forward Surge Current (Ifsm)	45 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	5.2 mm
Size-Width	2.71 mm
Size-Height	2.71 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Box (TB)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
