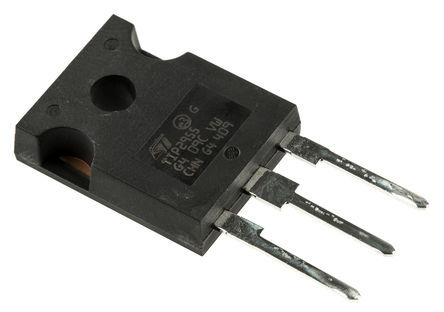

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH30AC06CWL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Forward Voltage	1.95V @15A
Reverse recovery time	55 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	140 A
Maximum Forward Voltage (Max)	2.25 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	16.02 mm
Size-Width	7.15 mm
Size-Height	21.07 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
