Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

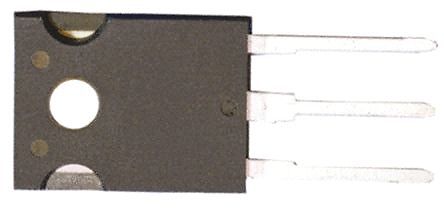

Case/Package | TO-247-3 |
Forward Voltage | 1.2V @15A |
Reverse recovery time | 25 ns |
Forward Current | 30 A |
Max Forward Surge Current (Ifsm) | 140 A |
Maximum Forward Voltage (Max) | 1.4 V |
Forward Current (Max) | 30 A |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -65 ℃ |
Junction Temperature | 175℃ (Max) |
Show | |
Size-Length | 15.75 mm |
Size-Width | 5.15 mm |
Size-Height | 20.15 mm |
Product Lifecycle Status | Active |
Packaging | Each |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
