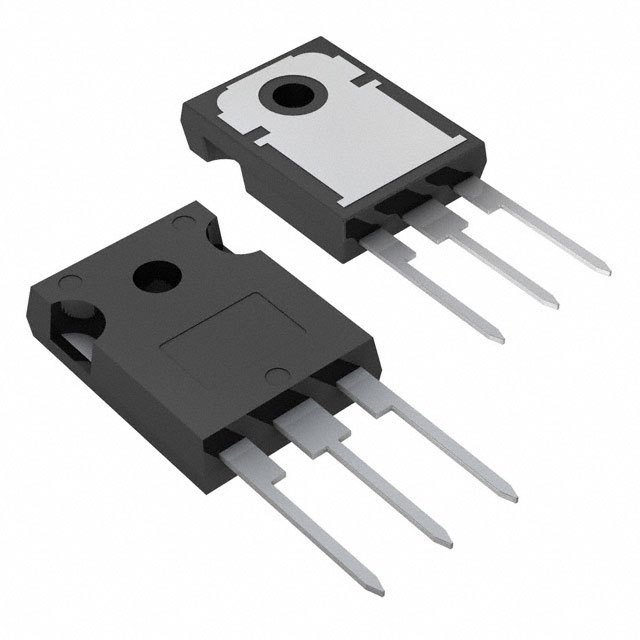

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STW40N90K5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.088 Ω
Power Dissipation	446 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	900 V
Rise Time	15.5 ns
Input Capacitance (Ciss)	3260pF @100V(Vds)
Fall Time	13.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	446W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
