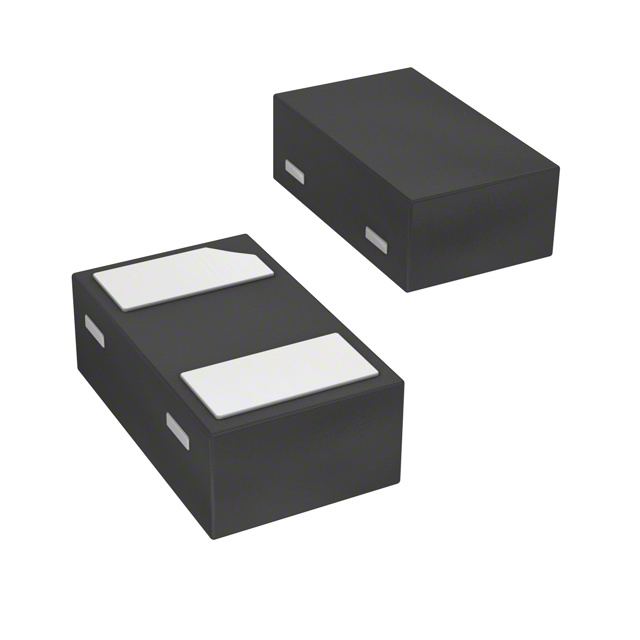

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ESD7462 is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. It has industry leading capacitance linearity over voltage making it ideal for RF applications. This capacitance linearity combined with the extremely small package and low insertion loss makes this part well suited for use in antenna line applications for wireless handsets and terminals.
- Features
- ---
- |
- Industry Leading Capacitance Linearity Over Voltage
- Ultra−Low Capacitance: 0.3 pF Typ
- Insertion Loss: 0.05 dB at 1 GHz; 0.21 dB at 3 GHz
- Low Leakage: < 1 nA
- IEC61000−4−2 (ESD): Level 4 ±15 kV Contact
- IEC61000−4−4 (EFT): 40 A −5/50 ns
- IEC61000−4−5 (Lightning): 1 A (8/20 s)
- ISO 10605 (ESD) 330 pF/2 k ±20 kV Contact
SZESD7462N2T5G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DFN-2 |
| Number of Positions | 2 Position |
| Power Dissipation | 300 mW |
| Clamping Voltage | 33 V |
| Test Current | 1 mA |
| Min Breakdown Voltage | 16.5 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -55℃ ~ 150℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Size-Height | 0.34 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
