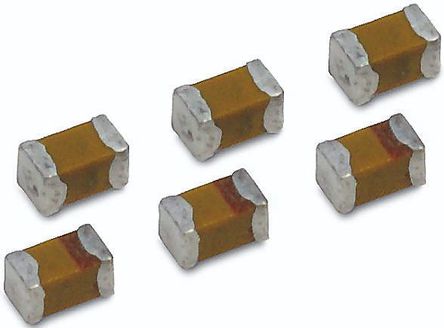

Image is for your reference only,please check specifications for details

TACL225M016XTA - AVX
Manufacturer:
AVX
ManyChip's Part#:
MC25561676
Category:
Tantalum Capacitor
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
Cap Tant Solid 2.2uF 16V L CASE 20% (1.6 X 0.85 X 0.85mm) SMD 1608-10 7.5Ω 125℃ T/R
Stock Locations:
Availability:
1,181 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The world"s smallest surface mount Tantalum capacitor, small enough to create space providing room for ideas to grow. TACmicrochip™ is a major breakthrough in miniaturization without reduction in performance.
* Capacitance Range: 0.47 μF to 150 μF
* Capacitance Tolerance: ±10%; ±20%
* Temperature Range: –55°C to +125°C

Show

TACL225M016XTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	16.0 V
Capacitance	2.2 µF
Equivalent Series Resistance (ESR)	7.5 Ω
Capacitance Tolerance	±20 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	16 V
	Show
Size-Length	1.6 mm
Size-Width	0.85 mm
Size-Height	0.85 mm
Dielectric Material	Tantalum
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
