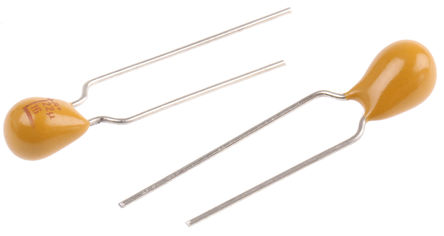

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX TAP series capacitors are radial leaded, polarized solid tantalum resin dipped capacitors with 0.10µF to 330µF capacitance range. TAP is a professional grade device manufactured with flame retardant coating. It features low leakage current, impedance, very small size and exceptional temperature stability. The 15 case sizes with wide capacitance and working voltage ranges makes TAP series capacitors to accommodate almost any application.
Rated voltage range from 6.3VDC to 50VDC
±5%, ±10% and ±20% tolerance
Compliant to CECC 30201 - 032 standard
Operating temperature range -55°C to 125°C

Show

TAP226M016CCS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Pin Pitch	5 mm
Voltage Rating (DC)	16 V
Capacitance	22 µF
Equivalent Series Resistance (ESR)	2 Ω
Capacitance Tolerance	±20 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	16 V
	Show
Size-Length	11.5 mm
Size-Height	11.5 mm
Size-Diameter	Φ6.00mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1
Life (Hours)	1000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
