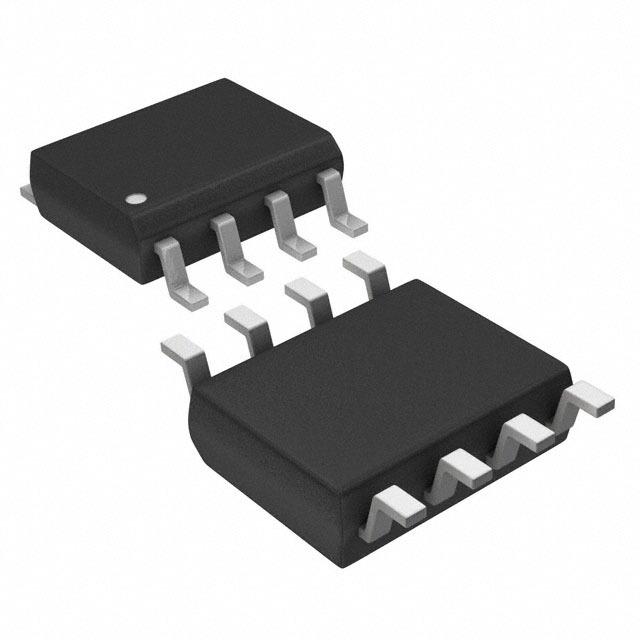

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description:
- The TC1121 is a charge pump converter with 100 mA output current capability. It converts a 2.4V to 5.5V input to a corresponding negative output voltage. As with all charge pump converters, the TC1121 uses no inductors saving cost, size and EMI.
- Features:
- • Optional High-Frequency Operation Allows Use of Small Capacitors
- • Low Operating Current (FC = GND): -50 μA
- • High Output Current (100 mA)
- • Converts a 2.4V to 5.5V Input Voltage to a Corresponding Negative Output Voltage (Inverter mode)
- • Uses Only 2 Capacitors; No Inductors Required
- • Selectable Oscillator Frequency:
- \- 10 kHz to 200 kHz
- • Power-Saving Shutdown Input
- • Available in 8-Pin MSOP, 8-Pin PDIP and 8-Pin Small Outline (SOIC) Packages
TC1121EOA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 200 kHz |
| Number of Outputs | 1 Output |
| Output Voltage | -5.50 V, 5.50 V (max) |
| Output Current | 100 mA |
| Output Power | 470 mW |
| Switching Frequency | 10kHz ~ 200kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.4 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
