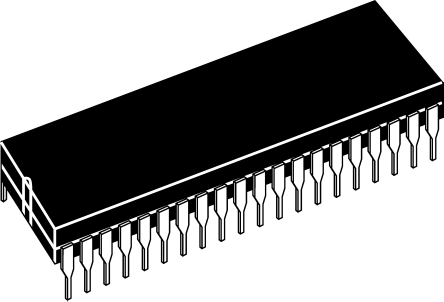

Image is for your reference only,please check specifications for details

TC850CPL - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC45625448
Category:
Analog to Digital, ADC IC
Package:
PDIP-40
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC850CPL Analog to Digital Converter, Dual, 15Bit, 40 SPS, Dual (+/-), -5V, 5V, DIP
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 38.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TC850CPL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	PDIP-40
Supply Voltage (DC)	4.00V (min)
Power Rating	20.0 mW
Output Voltage	4.90 V
Supply Current	2.00 mA
Number of Circuits	1 Circuit
Number of Bits	15 Bit
Power Dissipation	1230 mW
Sample Rate	40 sps
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1230 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5 V
Input Voltage	3.277 V
	Show
Size-Length	52.45 mm
Size-Width	14.1 mm
Size-Height	4.06 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
