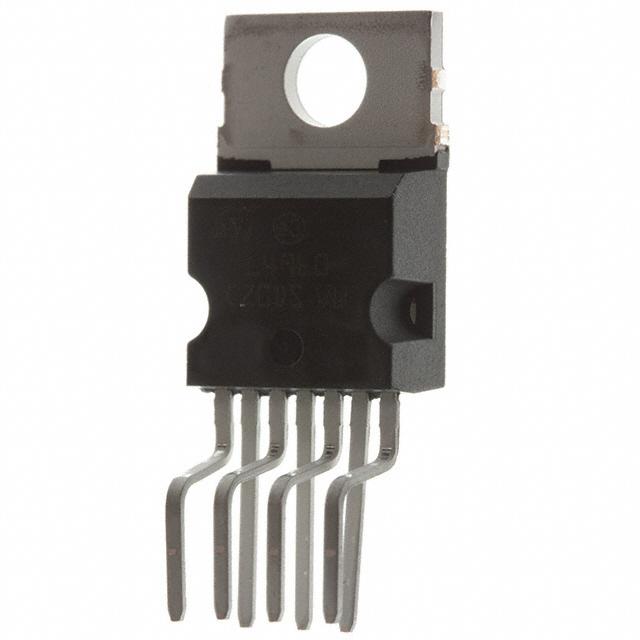

Image is for your reference only,please check specifications for details
- TDA7240AH - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC150752323
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 1CH Mono 20W Class-AB 7Pin(7+Tab) HEPTAWATT H Tube
-
Stock Locations:
-
Availability:214 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TDA7240A is a 20W bridge audio amplifier IC designed specially for car radio applications.
- Thanks to the low external part count and compact Heptawatt 7-pin power package the TDA7240A
- occupies little space on the printed circuit board.
- .COMPACT HEPTAWATT PACKAGE
- .FEW EXTERNAL COMPONENTS
- .OUTPUT PROTECTED AGAINST SHORT CIRCUITS TO GROUND AND ACROSS LOAD
- .DUMP TRANSIENT
- .THERMAL SHUTDOWN
- .LOUDSPEAKER PROTECTION
- .HIGH CURRENT CAPABILITY
- .LOW DISTORTION/LOW NOISE
TDA7240AH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | Heptawatt-7 |
| Supply Voltage (DC) | 18.0V (max) |
| Output Current | 4500 mA |
| Supply Current | 4.50 A |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 16000 mW |
| Quiescent Current | 65.0 mA |
| Output Power | 20 W |
| Gain | 40 dB |
| Output Current (Max) | 4500 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 16000 mW |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.8 mm |
| Size-Height | 9.2 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
