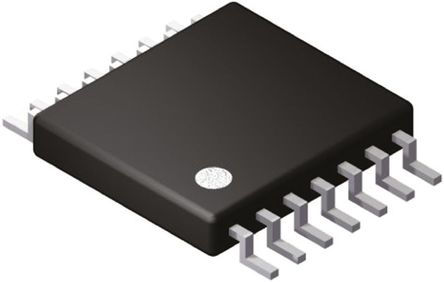

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS6022IPWP is a dual high-speed differential Line Driver capable of providing 200mA output current (minimum) into a 50R load. This driver can be configured differentially to drive a 50Vp-p output signal over low-impedance lines. The drivers are current feedback amplifier, designed for the high slew rate necessary to support low total harmonic distortion (THD) in xDSL applications. It is ideally suited for asymmetrical digital subscriber line (ADSL) at the remote terminal, high-data-rate digital subscriber line (HDSL) and very high-data-rate digital subscribe line (VDSL), where it supports the high-peak voltage and current requirements of this applications. Separate power supply connections for each driver are provided to minimize crosstalk.
Independent power supplies for low crosstalk
Thermal-shutdown and short-circuit protection
210MHz Bandwidth (-3dB) at 50R load
1900V/µs Slew rate (G=5)
-69dB Third-order harmonic distortion at f=1MHz, 50R load and VO(PP)=20V
Green product and no Sb/Br

Show

THS6022IPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Supply Voltage (DC)	4.50V (min)
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Power Dissipation	3300 mW
Common Mode Rejection Ratio	62dB ~ 73dB
Input Offset Drift	20.0 µV/K
Bandwidth	715 MHz
Slew Rate	1.90 kV/μs
Gain Bandwidth Product	210 MHz
Available Channels	D
Output Voltage (Max)	25.2 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	715 MHz
Gain Bandwidth	210 MHz
Power Dissipation (Max)	3300 mW
Minimum CMRR Range	62 dB
Supply Voltage	5V ~ 15V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	9 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
