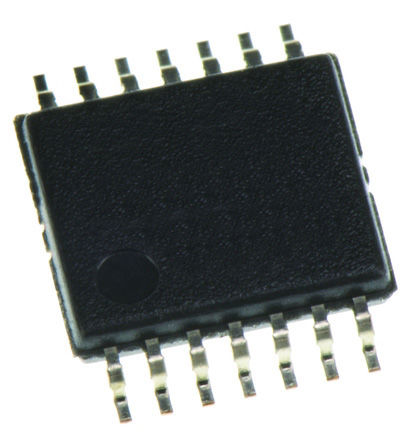

Image is for your reference only,please check specifications for details

THS7374IPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC18971477
Category:
Video Amplifier, CATV Amplifier IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS7374IPW Buffer Amplifier, 4 Amplifiers, 9.5MHz, 130V/µs, 2.85V to 5.5V, TSSOP, 14Pins
Stock Locations:
Availability:
1,850 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS7374IPW is a 4-channel SDTV (component and composite) Video Amplifier with 9.5MHz filters and 6dB gain. It incorporates a sixth-order Butterworth filter (able to be bypassed) which is useful as a digital-to-analog converter (DAC) reconstruction filter or an analog-to-digital converter (ADC) anti-aliasing filter. The 9.5MHz filter is a perfect choice for SDTV video that includes composite (CVBS) and s-video. As part of the THS7374 flexibility, the input can be configured for either AC or DC-coupled inputs. The 300mV output level shift allows for a full sync dynamic range at the output with 0V input. The AC-coupled modes include a transparent sync-tip clamp option for CVBS, Y and G"B"R" signals with sync. AC-coupled biasing for C"/P"B/P"R channels can easily be achieved by adding an external resistor. The THS7374 is the perfect choice for all video buffer applications. Its rail-to-rail output stage with 6dB gain allows for both AC and DC line driving.
Versatile input biasing
Rail-to-rail output
Built-in 6dB gain (2V/V)
Output swings within 100mV from the rails to allow AC or DC output coupling
Supports driving 2 lines per channel
Low differential gain/phase of 0.15%/0.3°
Low 9.6mA at 3.3V total quiescent current
0.1µA Disabled supply current function
150MHz (-3dB) Filter bypass mode
Green product and no Sb/Br

Show

THS7374IPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Output Current	90 mA
Supply Current	10 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	870 mW
Slew Rate	130 V/μs
Gain Bandwidth Product	9.5 MHz
Gain	6.00 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	9.5 MHz
Gain Bandwidth	9.5 MHz
Power Dissipation (Max)	870 mW
Supply Voltage	2.85V ~ 5.5V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
