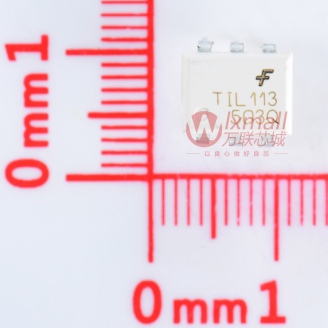

Image is for your reference only,please check specifications for details
- TIL113 - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC90493113
-
Category:Optocoupler, Optoisolator
-
Package:PDIP-6
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler DC-IN 1CH Darlington With Base DC-OUT 6Pin PDIP Black Bulk
-
Stock Locations:
-
Availability:218 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The CNX48U, H11BX, MOC8080 and TIL113 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
- FEATURES
- • High sensitivity to low input drive current
- • Meets or exceeds all JEDEC Registered Specifications
- • VDE 0884 approval available as a test option - add option .300. (e.g., H11B1.300)
- APPLICATIONS
- • Low power logic circuits
- • Telecommunications equipment
- • Portable electronics
- • Solid state relays
- • Interfacing coupling systems of different potentials and impedances.
TIL113 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | PDIP-6 |
| Voltage Rating (DC) | 30.0 V |
| Input Voltage (DC) | 1.20 V |
| Output Voltage | ≤30.0 V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.2 V |
| Polarity | NPN |
| Rise Time | 350 ns |
| Isolation Voltage | 5300 Vrms |
| Forward Current | 100 mA |
| Output Voltage (Max) | 30 V |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
