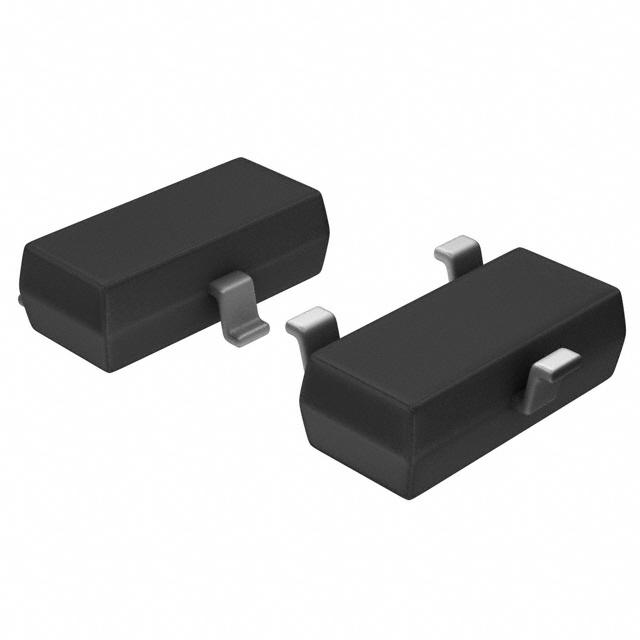

Image is for your reference only,please check specifications for details

TL431BQDBZRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC11461600
Category:
Voltage Reference
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
Shunt Voltage Reference IC 36V ±0.5% 100mA TO-236-3, SC-59, SOT-23-3
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TL431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable automotive temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors (see Figure 17). This device has a typical output impedance of 0.2 Ω. Active output circuitry provides a sharp turn-on characteristic, making this device an excellent replacement for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.
Qualified for Automotive Applications
Operation From −40°C to 125°C
Reference Voltage Tolerance at 25°C
− 1%...A Grade
− 0.5%...B Grade
Typical Temperature Drift
− 14 mV (Q Temp)
Low Output Noise
0.2-ΩTypical Output Impedance
Sink-Current Capability = 1 mA to 100 mA
Adjustable Output Voltage = Vrefto 36 V

Show

TL431BQDBZRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Capacitance Tolerance	±0.5 %
Output Voltage	2.495V ~ 36V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Input Voltage (Max)	37 V
Input Voltage (Min)	2.495 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.495 V
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	37 V
	Show
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±92 ppm/℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
