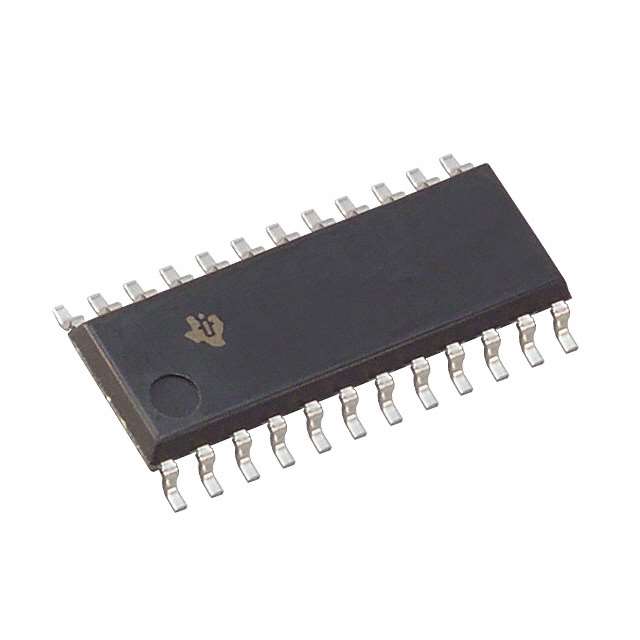

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 8 Bit Analog to Digital Converter 1 Input 1 Flash 24-SO
TLC5510INSR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOP-24 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 18.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 8 Bit |
| Sample Rate | 20 Msps |
| Power Consumption | 127.5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | 20 ℃ |
| Number of Input Channels | 1 Channel |
| Input Voltage | 2 V |
| Show | |
| Size-Length | 15 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | 20℃ ~ 75℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
