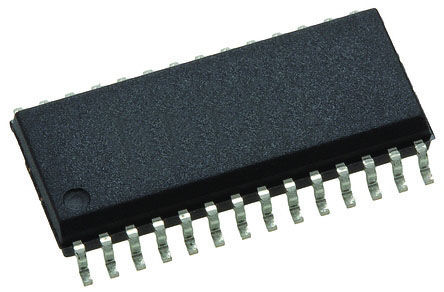

- TLC7135CDW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8936359
-
Category:Analog to Digital, ADC IC
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TLC7135CDW Analog to Digital Converter, 14Bit, 3KSPS, 4V, 6V, SOIC
-
Stock Locations:
-
Availability:314 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 10.04
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC7135CDW is a 4-1/2-digit dual-slope-integrating Analog-to-digital Converter (ADC) designed to provide interfaces to both a microprocessor and a visual display. The digit-drive outputs D1 through D4 and multiplexed binary-coded-decimal outputs B1/B2/B4/B8 provide an interface for LED or LCD decoder/drivers as well as microprocessors. It offers 50ppm resolution with a maximum linearity error of one count. The zero error is less than 10µV and zero drift is less than 0.5µV/°C. Source-impedance errors are minimized by low input current. Rollover error is limited to ±l;1 count. The BUSY, STROBE\, RUN/HOLD\, OVER RANGE and UNDER RANGE control signals support microprocessor-based measurement systems. The control signals also can support remote data acquisition systems with data transfer through universal asynchronous receiver transmitters (UARTs).
- Zero reading for 0V input
- Precision null detection with true polarity at zero
- True differential input
- Multiplexed binary-coded-decimal output
- Control signals allow interfacing with UARTs or microprocessors
- Auto ranging capability with over and under-range signals
- TTL-compatible outputs
- Green product and no Sb/Br
TLC7135CDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Supply Voltage (DC) | 4.00V (min) |
| Output Voltage | 5 V |
| Supply Current | 1 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 14 Bit |
| Power Dissipation | 5 mW |
| Sample Rate | 3 KSPS |
| Power Consumption | 5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Number of Input Channels | 1 Channel |
| Supply Voltage | 4V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Size-Length | 18 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Weight | 0.0116927048872 kg |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
