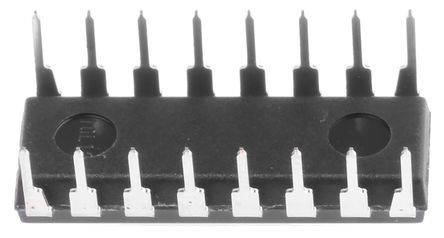

Image is for your reference only,please check specifications for details

TLC7524CN - TI
Manufacturer:
TI
ManyChip's Part#:
MC1566592
Category:
Digital to Analog, DAC IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC7524CN Digital to Analog Converter, 8Bit, 10MSPS, Parallel, 4.75V to 5.25V, 14.5V to 15.5V, DIP, 16Pins
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.95

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC7524CN is a 8-bit Multiplying Digital to Analogue Converter designed for easy interface to most popular microprocessors. It has input latches and load cycles similar to the write cycles of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, which produce the highest glitch impulse. It has fast control signalling for digital signal-processor applications including interface with TMS320. The device provides accuracy to 1/2 LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5mW typically. Featuring operation from a 5 to 15V single supply, this DAC interfaces easily to most microprocessor buses or output ports. The 2 or 4-quadrant multiplying makes it an ideal choice for many microprocessor-controlled gain-setting and signal-control applications. This is interchangeable with AD7524, PMI PM-7524 and micropower systems MP7524.
Easily interfaced to microprocessors
On-chip data latches
Monotonic over the entire A/D conversion range
Segmented high-order bits ensure low-glitch output
CMOS technology
Green product and no Sb/Br

Show

TLC7524CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	15.0V (max)
Operating Voltage	4.75V ~ 4.25V
Number of Outputs	1 Output
Supply Current	2 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Power Dissipation	5 mW
Sample Rate	10.0 mHz
Power Consumption	5 mW
Input Capacitance	5 pF
Thermal Shutdown	No
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	5 mW
Number of DACs	1 DAC
Supply Voltage (Max)	15.5 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
