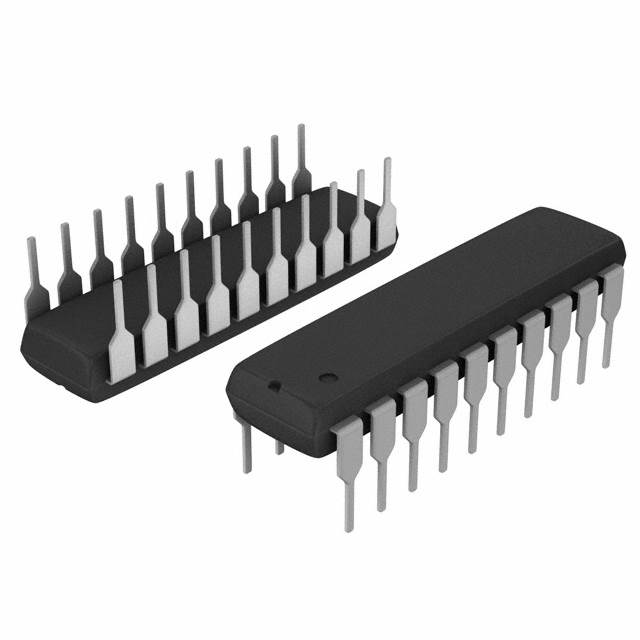

TLC7628CN - TI
Manufacturer:
TI
ManyChip's Part#:
MC55312404
Category:
Digital to Analog, DAC IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC7628CN Digital to Analog Converter, 8Bit, 10MSPS, Parallel, 10.8V to 15.75V, DIP, 20Pins
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC7628C is a dual, 8-bit, digital-to-analog converter (DAC) designed with separate on-chip data latches and featuring exceptionally close DAC-to-DAC matching. Data are transferred to either of the two DAC data latches through a common, 8-bit input port. Control input DACA/DACB determines which DAC is loaded. The load cycle of this device is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest.
The TLC7628C operates from a 10.8-V to 15.75-V power supply and is TTL-compatible over this range. 2- or 4-quadrant multiplying makes these devices a sound choice for many microprocessor-controlled gain-setting and signal-control applications.
The TLC7628C is characterized for operation from 0°C to 70°C.

Show

TLC7628CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Number of Outputs	2 Output
Output Voltage	25.0 V
Supply Current	2.00 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	0.02 W
Sample Rate	10 Msps
Power Consumption	20 mW
Thermal Shutdown	No
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	20 mW
Number of DACs	2 DAC
Supply Voltage	10.8V ~ 15.75V
Supply Voltage (Max)	15.75 V
Supply Voltage (Min)	10.8 V
	Show
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
