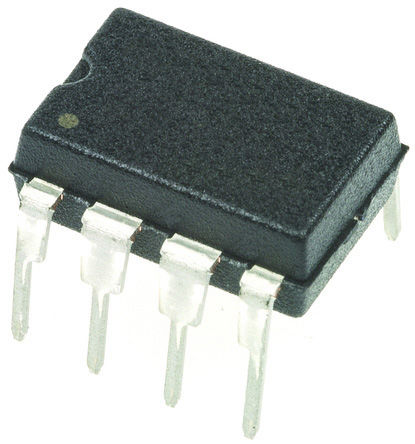

Image is for your reference only,please check specifications for details

TLE2082ACP - TI
Manufacturer:
TI
ManyChip's Part#:
MC31298415
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLE2082ACP Operational Amplifier, Dual, 2 Amplifier, 9.4MHz, 35V/µs, ± 2.25V to ± 19V, DIP, 8Pins
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**description**
The TLE208x series of JFET-input operational amplifiers more than double the bandwidth and triple the slew rate of the TL07x and TL08x families of BiFET operational amplifiers. The TLE208x also have wider supply-voltage rails, increasing the dynamic-signal range for BiFET circuits to ±19 V. On-chip zener trimming of offset voltage yields precision grades for greater accuracy in dc-coupled applications. The TLE208x are pin-compatible with lower performance BiFET operational amplifiers for ease in improving performance in existing designs.
BiFET operational amplifiers offer the inherently higher input impedance of the JFET-input transistors, without sacrificing the output drive associated with bipolar amplifiers. This makes these amplifiers better suited for interfacing with high-impedance sensors or very low level ac signals. They also feature inherently better ac response than bipolar or CMOS devices having comparable power consumption.
**Direct Upgrades to TL05x, TL07x, and ****TL08x BiFET Operational Amplifiers**
**Greater Than 2**× **Bandwidth (10 MHz) and ****3**× **Slew Rate (45 V/**µ**s) Than TL08x**
**On-Chip Offset Voltage Trimming for ****Improved DC Performance**
**Wider Supply Rails Increase Dynamic ****Signal Range to **±**19 V**

Show

TLE2082ACP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	≤80 mA
Supply Current	3.1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1 W
Common Mode Rejection Ratio	70 dB
Input Offset Drift	2.40 µV/K
Bandwidth	9.4 MHz
Slew Rate	40.0 V/μs
Gain Bandwidth Product	9.4 MHz
Input Offset Voltage	700 µV
Input Bias Current	20 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	10 MHz
Power Dissipation (Max)	1000 mW
Minimum CMRR Range	70 dB
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
