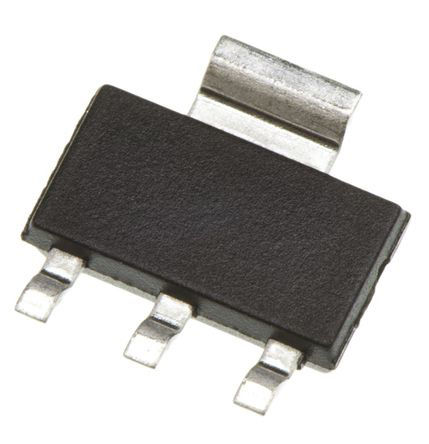

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

•5-V Low-Drop Fixed-Voltage Regulator •Output voltage tolerance ≤ ± 2 % • Low-drop voltage • Very low current consumption • Overtemperature protection • Short-circuit proof • Suitable for use in automotive electronics • Reverse polarity

Show

TLE4264G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Input Voltage (DC)	45.0V (max)
Output Voltage	5 V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	9 mA
voltage rating	0.25V @100mA
Input Voltage (Max)	45 V
Input Voltage (Min)	5.5 V
Output Voltage (Min)	5 V
Output Current (Max)	120 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	5.5V ~ 45V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
