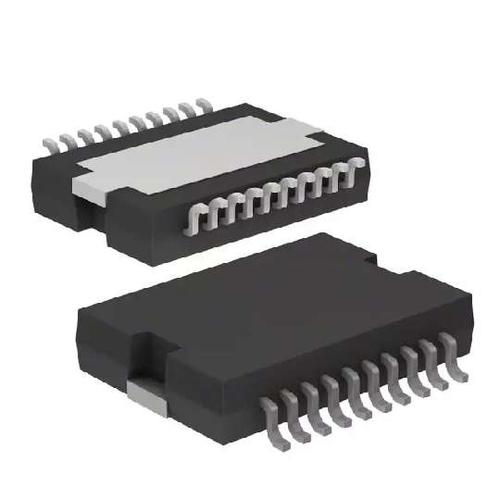

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Functional Description
- The TLE 4471 is a monolithic integrated very low-drop triplevoltage regulator. The main output supplies loads up to 450 mA and the additional tracked outputs can provide up to 50 mA and 100 mA. In addition the device includes a watchdog for microcontroller supervision, an undervoltagereset, a power on reset andextended enabling features.
- Features
- • Triple Voltage Regulator
- • Output Voltage 5 V with 450 mA Current Capability
- • Two tracked Outputs for 50 mA and 100 mA
- • Enable Function for mainand tracked Output(s)
- • Reset with adjustable Threshold
- • Undervoltage- and Power On-Reset
- • Watchdog
- • Independent Watchdog- and Reset delay
- • Wide Temperature Range
- • Overtemperature Protection
- • Overvoltage Protection
- • Reverse Polarity Proof
- • Green Product (RoHS compliant)
- • AEC Qualified
TLE4471G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PG-DSO-20 |
| Number of Outputs | 3 Output |
| Output Voltage | 5 V |
| Quiescent Current | 1.8 mA |
| voltage rating | 0.25V @450mA |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 5.5 V |
| Accuracy | ±2 % |
| Input Voltage | 5.5V ~ 40V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
