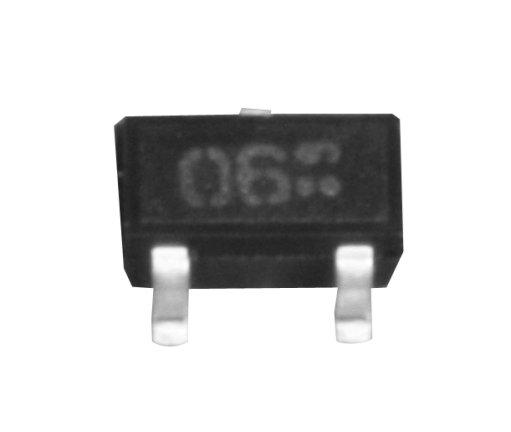

Image is for your reference only,please check specifications for details

TLE4906L - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC3233200
Category:
Magnetic Sensor
Package:
P-SSO-3-2
Datasheet:
Datasheet 3D Model
Description:
Hall Effect Sensor 20mA 3.3V/5V/9V/12V/15V Automotive 3Pin SSO Ammo
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE4906L is a high precision Hall Effect Switch with highly accurate switching thresholds for operating temperatures up to 150°C. It features high sensitivity and high stability of the magnetic switching points and high resistance to mechanical stress by active error compensation.
Operation from unregulated power supply
Reverse battery protection
Superior temperature stability
Peak temperatures up to 195°C without damage
1µs Typical low jitter
Digital output signal
ESD sensitive device, take proper precaution while handling the device.

Show

TLE4906L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	P-SSO-3-2
Supply Voltage (DC)	2.70V (min)
Output Current	20 mA
Supply Current	4 MA
Number of Positions	3 Position
Output Current (Max)	20 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	4.16 mm
Size-Width	1.52 mm
Size-Height	3.29 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
