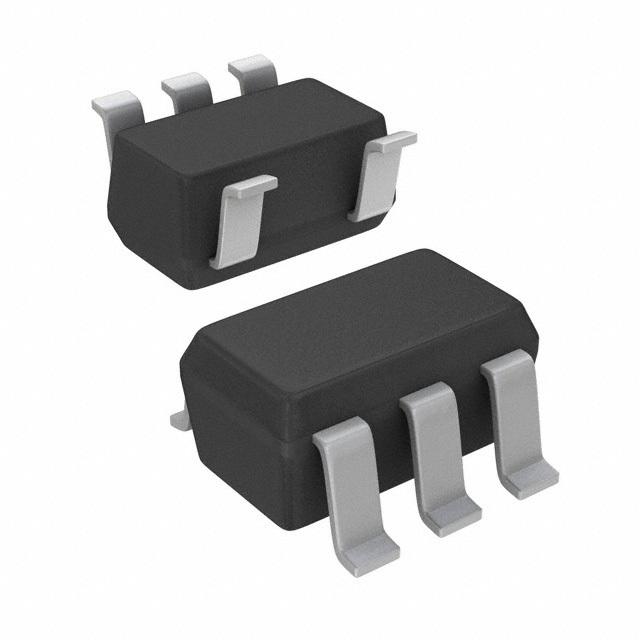

Image is for your reference only,please check specifications for details

TLV2771IDBVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC5576646
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV2771IDBVR Operational Amplifier, Single, 1 Amplifier, 5.1MHz, 10.5V/µs, 2.5V to 6V, SOT-23, 5Pins
Stock Locations:
Availability:
122 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.97

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLV277x CMOS operational amplifier family combines high slew rate and bandwidth, rail-to-rail output swing, high output drive, and excellent dc precision. The device provides 10.5 V/µs of slew rate and 5.1 MHz of bandwidth while only consuming 1 mA of supply current per channel. This ac performance is much higher than current competitive CMOS amplifiers. The rail-to-rail output swing and high output drive make these devices a good choice for driving the analog input or reference of analog-to-digital converters. These devices also have low distortion while driving a 600-Ωload for use in telecom systems.
High Slew Rate. . . 10.5 V/µs Typ
High-Gain Bandwidth. . . 5.1 MHz Typ
Supply Voltage Range 2.5 V to 5.5 V
Rail-to-Rail Output
360 µV Input Offset Voltage
Low Distortion Driving 600-Ω 0.005% THD+N
1 mA Supply Current (Per Channel)
2 pA Input Bias Current
Characterized From TA= −55°C to 125°C
Available in MSOP and SOT-23 Packages
Micropower Shutdown Mode...IDD< 1 µA
Available in Q-Temp Automotive
High Reliability Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
17 nV/√HzInput Noise Voltage

Show

TLV2771IDBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	≤50 mA
Supply Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	437 mW
Common Mode Rejection Ratio	60 dB
Input Offset Drift	2.00 µV/K
Bandwidth	5.1 MHz
Slew Rate	10.5 V/μs
Gain Bandwidth Product	5.1 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	5.1 MHz
Power Dissipation (Max)	437 mW
Minimum CMRR Range	60 dB
Supply Voltage	2.5V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
