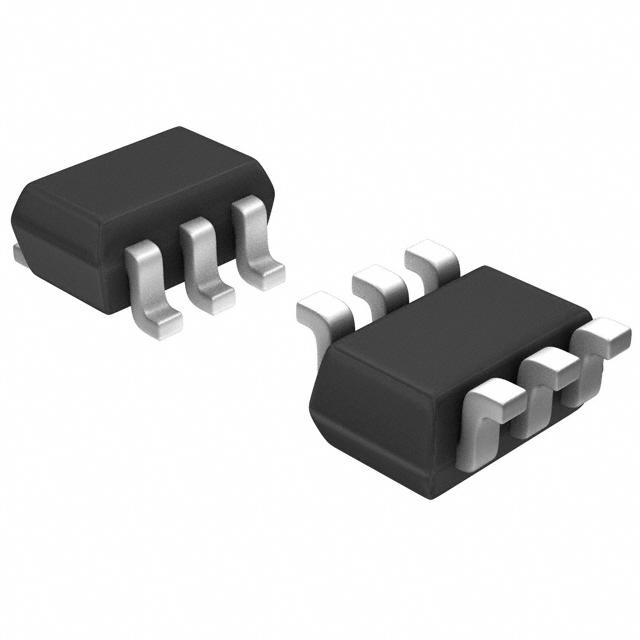

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step up TLV61224DCKR DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 0.04 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 0.7 V that does not exceed 3 V. With a fixed output that has a voltage of 3 V, this is power management at its best. At a load regulation of 0.5%(Typ) and line regulation of 0.5%(Typ) your circuit is capable of maintaining a constant voltage level at your output. This converter is 94 % efficient. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has an operating temperature range of -40 °C to 85 °C.
TLV61224DCKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 3 V |
| Output Current | 0.2 A |
| Quiescent Current | 5.00 µA |
| Number of Regulated Outputs | 1 Output |
| Topology | Boost |
| Input Voltage (Max) | 3 V |
| Input Voltage (Min) | 0.7 V |
| Output Voltage (Min) | 3 V |
| Output Current (Max) | 0.04 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 0.7V ~ 3V |
| Show | |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
