Description

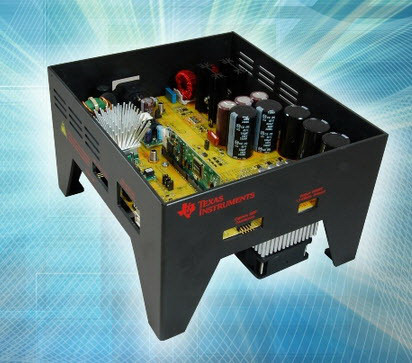

The TMDSHVMTRINSPIN high voltage motor control kit is an InstaSPIN technology based, development platform for digital control of high voltage motors. Utilizing new InstaSPIN FOC and InstaSPIN motion technologies, the kit allows developers to quickly identify, automatically tune, and control a three phase motor, providing an instantly stable and functional motor control system. The kit has a universal AC input (110VAC to 240VAC) or direct DC bus input (50V to 350V) and supports a rated output of 750W, regulated by closed loop control. All three common types of three phase motors can be spun: AC induction (ACI), brushless DC (BLDC), and permanent magnet synchronous motor (PMSM & IPM). The Piccolo TMS320F28027F (InstaSPIN FOC) and TMS320F28069M (InstaSPIN motion or InstaSPIN FOC) microcontrollers senselessly controls each type of motor via field oriented control.
Support for AC induction, permanent magnet AC synchronous, brushless DC motor
Digital MCU motor control development platform
Motor driver stage capable of up to 10A at 350V dv-bus continuous
InstaSPIN FOC (F28069M & F28027F) and InstaSPIN motion (F28069M) sensorless control solutions
Open source hardware
Piccolo TMS320F28027F non isolated controlCARD (use isolated emulator on HVKIT)
This equipment operates at high voltages and currents which can result in hazardous electrical shock. Please make sure you understand and follow all necessary safety precautions prior to operating.
Motors not included.

Show

TMDSHVMTRINSPIN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	40 ℃
Input Voltage	110V ~ 240V
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
