TMP01FPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC257745
Category:
Temperature Sensor
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES TMP01FPZ Temperature Sensor IC, Voltage, ± 3℃, -55℃, +125℃, DIP, 8Pins
Stock Locations:
Availability:
319 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

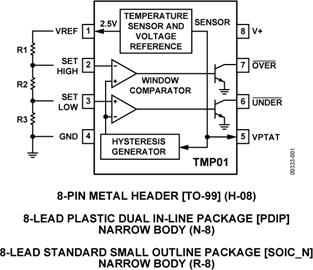

The TMP01 series Temperature Sensor that generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range. Both the high/low temperature trip points and hysteresis (overshoot) band are determined by user-selected external resistors. The TMP01 consists of a band gap voltage reference combined with a pair of matched comparators. The reference provides both a constant 2.5 V output and a voltage proportional to absolute temperature (VPTAT) which has a precise temperature coefficient of 5 mV/K and is 1.49 V (nominal) at 25°C. The TMP01 utilizes proprietary thin-film resistors in conjunction with production laser trimming to maintain a temperature accuracy of ±1°C (typical) over the rated temperature range, with excellent linearity. The open-collector outputs are capable of sinking 20 mA, enabling the TMP01 to drive control relays directly.
±1°C Accuracy over-temperature (typical)
User-programmable temperature trip points
User-programmable hysteresis
Over/under-temperature sensor and alarm
Board-level temperature sensing

Show

TMP01FPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	4.50V (min)
Output Voltage	1.49 V
Output Current	2 mA
Supply Current	500 µA
Number of Positions	8 Position
Power Dissipation	2.5 mW
Output Current (Max)	50 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5 mW
Accuracy	±1 ℃
Supply Voltage	4.5V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.27 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
