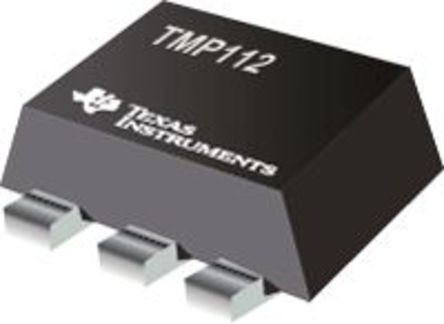

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMP112AIDRLT is a high accuracy, low power digital temperature sensor in 6 pin SOT-563 package. This digital temperature sensor is ideal for NTC/PTC thermistor replacement where high accuracy is required. The device offers an accuracy of ±0.5°C without requiring calibration or external component signal conditioning. This temperature sensor is highly linear and does not require complex calculations or lookup tables to derive the temperature. The calibrating for improved accuracy feature allows users to calibrate for accuracy as good as ±0.17°C. The TMP112 device has SMBus, two wire and I2C interface compatibility and allows up to four devices on one bus. The device also features SMBus alert function.
Low quiescent current of 10µA active (maximum) and 1µA shutdown (maximum)
Supply voltage range from 1.4V to 3.6V
12bit resolution
Accuracy (temperature error) of ±0.1°C at 25°C and 3.3V
Operating temperature range from -40°C to 125°C
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.

Show

TMP112AIDRLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-563-6
Supply Voltage (DC)	1.40V (min)
Output Voltage	400 mV
Output Current	3.00 mA
Supply Current	0.01 mA
Number of Positions	6 Position
Number of Bits	12 Bit
Quiescent Current	7.00 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 ℃
Supply Voltage	1.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.4 V
	Show
Size-Length	1.6 mm
Size-Width	1.2 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
